Description

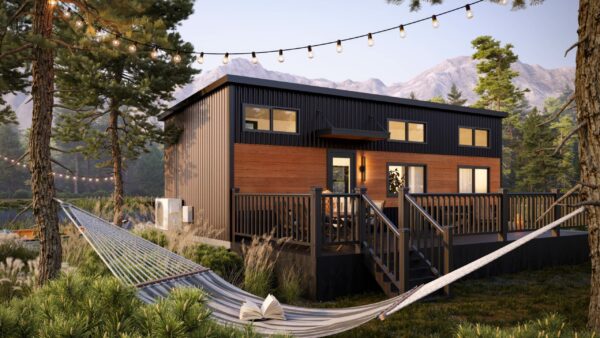

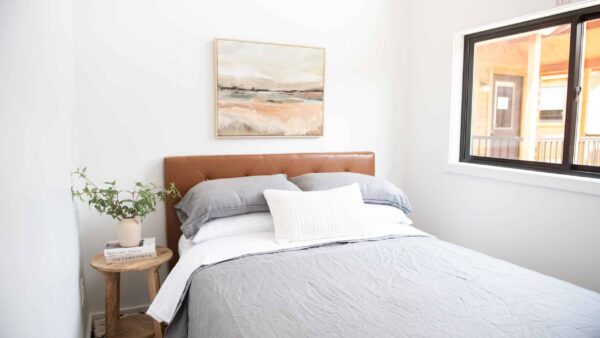

The Cascade Modern Park Model Home, is the original two-bedroom park-model home. With two full bedrooms and a lofted area, you can comfortably host and enjoy the space with sleeping room for up to 6 guests. This model offers a spacious living area, tons of storage space, and a full bathroom. Finally, the struggle to find a comfortable vacation space for the entire family is over.
General Specs:
- 13’ X 31’ Park Model = 396 sq.ft.
- RVIA Seal, built to the ANSI A119.5 Standards
Exterior Features:
- Trailer: Heavy duty steel, 4-axle chassis with detachable hitch
- Exterior siding: matte black corrugated metal
- Metal Roof: matte black corrugated metal
- 2/12 Pitch roof
- 70lb Snow load roof system
- Tight-knot Clear Cedar Accent
- Insulation: walls/floors/ceiling R17 closed cell spray foam
- Walls 2×4 studs
- Floors constructed of 2×6 joists spaced 16” on center with ¾” OSB subfloor
- Roof Constructed of double 2×6 16” on center.
- 7/16” OSB wall sheathing
- House wrap
- Pella Impervia series windows and doors. Black exterior/interior color
- (2) GFI exterior outlets
- Water inlet: standard garden hose connection
- Sewer connection (1-main drain, 3” PVC pipe)
- 100 Amp hardwired electrical service
Interior Features:
- Luxury vinyl plank flooring
- All light fixtures, outlets and switches included
- Dual head ductless mini split units, 9k per head
- Life safety kit in each home includes smoke/CO detectors and fire extinguisher
- Walls and ceiling finished in ½” C2 birch plywood, primed and painted
- Smooth flat panel interior doors
- Flat 1×3 window trim primed and painted

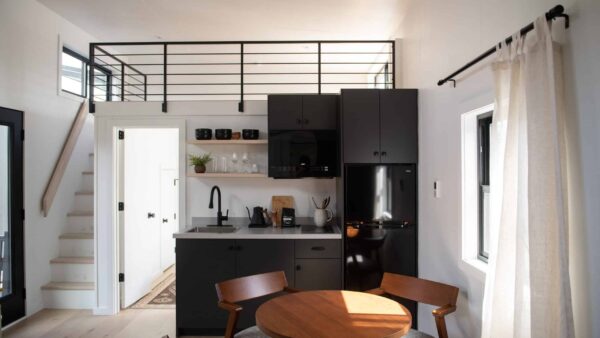

- Custom fabricated steel loft railing

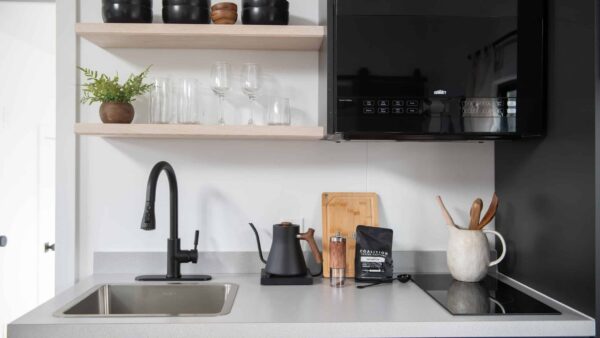

Kitchen & Bath Features:
- Birch kitchen and bathroom cabinets with flat panel doors and drawer fronts, with full extension soft close drawers, and soft close doors
- Laminate countertops in kitchen and bathroom
- 2 burner electric cooktop
- 10 cu. ft. counter-depth refrigerator
- Rheem 19 gallon electric water heater
- 1.6 Cubic ft microwave with cabinet above cooktop

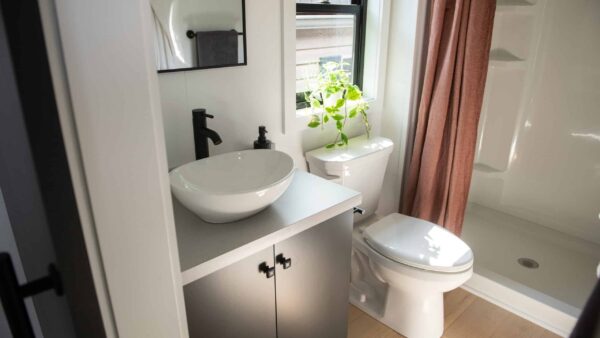

- 4′ fiberglass surround shower
- Elongated toilet
- Bathroom exhaust fan
- All plumbing included with water lines in walls for colder climates
- Kitchen sink: single bowl 16” stainless steel sink
- Bathroom sink: white vessel sink
- Delta premium faucets
